  • Original Vs Reproduction Sized Scabbards

    Is there a difference in the size of original 1816 and M1842 bayonets? A well known maker of leather goods had Federal Issue 1851-1859 bayonet scabbards for sale. The buyer is offered the option of a scabbard which will fit original 1816 - 42 bayonets or reproduction 1816 - 42 bayonets. What is the difference between the two?

    Thank you.

    Dan Stewart

  • #2
    Re: Original Vs Reproduction Sized Scabbards

    Why not ask the maker of said scabbard.
    John Greenfield

    GawdAwful Mess [url]www.gawdawfulmess.com[/url]

    Comment


    • #3
      Re: Original Vs Reproduction Sized Scabbards

      Hallo!

      M1816:

      Blade length: 16"
      Socket length: 3"
      Blade width: 1"
      Shank length: 1 1/4" +/-
      Socket front OD, 1 1/16"
      Socket front ID: 27/32"
      Barrel stud: Top

      However there are variants with slightly varying dimensions as well as shape of the stud slot.
      There are also the M1816 for the Maynard Remington conversions with the main variation being an 18" blade.

      M1842:

      Blade length: 18"
      Socket length: 2 5/8"
      Blade width: 1"
      Shank length: 1 1/2"
      Socket front OD, 31/32"
      Socket front ID: 27/32"
      Barrel stud: Bottom

      Indian and Pakistani Reproduction bayonets will/may vary by bayonet, as they are "hand made" according to the skills and discipline of the workers.

      Curt
      Curt Schmidt
      In gleichem Schritt und Tritt, Curt Schmidt

      -Hard and sharp as flint...secret, and self-contained, and solitary as an oyster.
      -Haplogroup R1b M343 (Subclade R1b1a2 M269)
      -Pointless Folksy Wisdom Mess, Oblio Lodge #1
      -Vastly Ignorant
      -Often incorrect, technically, historically, factually.

      Comment


      • #4
        Re: Original Vs Reproduction Sized Scabbards

        Originally posted by Daniel View Post
        Is there a difference in the size of original 1816 and M1842 bayonets?

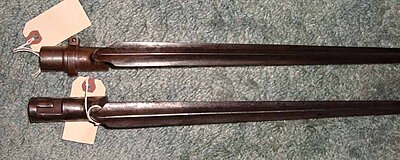

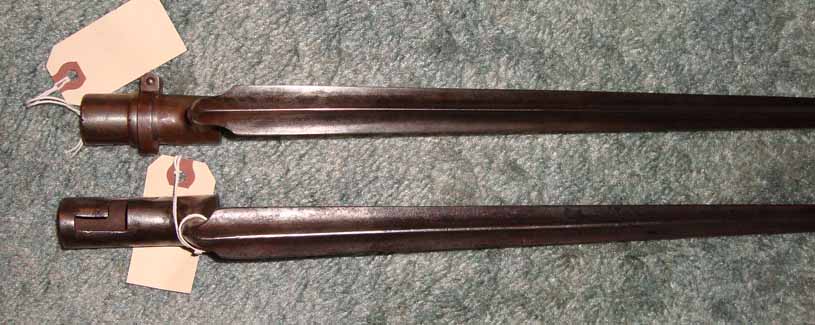

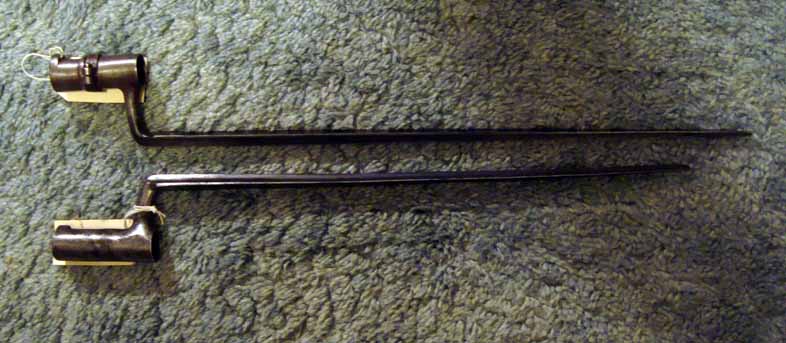

        Mostly Length for scabbard purposes.
        Attached Files
        Jim Mayo
        Portsmouth Rifles, Company G, 9th Va. Inf.

        CW Show and Tell Site
        http://www.angelfire.com/ma4/j_mayo/index.html

        Comment


        • #5
          Re: Original Vs Reproduction Sized Scabbards

          Curt and Jim, Thanks for clearing that up for me.

          Dan Stewart

          Comment


          • #6
            Re: Original Vs Reproduction Sized Scabbards

            A friend and I both had scabbards custom made by a well known maker for our Model 1816 bayonets. Mine is original, his a repro. Among other things the lenght is different between the two.
            Steve Blancard
            13th VA. Co. A
            Steve Blancard
            Corporal
            13th Virginia Infantry, Company A.
